What is USB (Universal Serial Bus)?

Universal Serial Bus is short of,  USB stands as a standard type of connection for plenty of one-of-a-kind gadgets.

Generally, USB refers to the kinds of cables and connectors used to connect these many external devices to computers.

More About USB

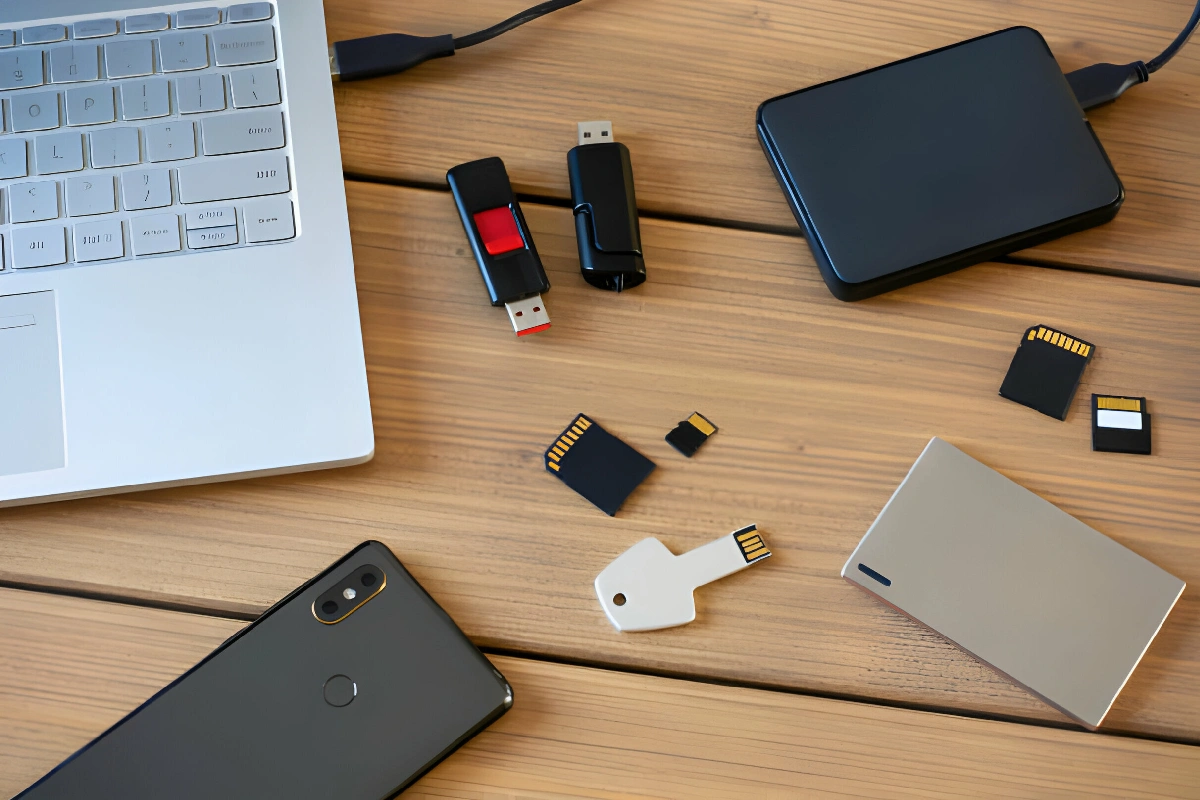

The Universal Serial Bus well-known has been extraordinarily successful. USB ports and cables use to connect hardware consisting of printers, scanners, keyboards, mice, flash drives, external hard drives, joysticks, cameras, and more to computers of all kinds, including desktops, capsules, etc., netbooks, and so forth.

In truth, USB has to turn out to be so common that you may locate the connection available on nearly any computer-like device such as video game consoles, home audio/visual devices, or even in many motors.

Many transportable devices, like smartphones, eBook readers, and small drugs, use USB in most cases for charging. In addition, USB charging has grown to be so common that it is now smooth to find substitute electric stores at home improvement shops with USB ports constructed, negating the need for a USB power adapter.

USB Versions

There were several predominant USB (Universal Seria) requirements, USB4 being the most modern:

  • USB4: The Thunderbolt 3 specification, USB4 helps forty Gbps (forty,960 Mbps).
  • USB 3.2 Gen 2×2: Also called USB three.2, compliant gadgets can transfer records at 20 Gbps (20,480 Mbps), known as Superspeed+ USB twin-lane.
  • USB 3.2 Gen 2: Previously known as USB 3.1, compliant gadgets can switch facts at 10 Gbps (10,240 Mbps), referred to as Superspeed+.
  • And also, USB 3.2 Gen 1: Previously called USB 3. Zero, compliant hardware can reach a maximum transmission price of five Gbps (5, one hundred twenty Mbps), referred to as SuperSpeed USB.
  • USB 2.0: USB 2.0 compliant devices can reach a maximum transmission charge of 480 Mbps, referred to as High-Speed USB.
  • USB 1.1: USB 1.1 gadgets can reach a maximum transmission charge of 12 Mbps, known as Full-Speed USB.

THESE DAYS, most USB gadgets and cables adhere to USB 2.0 and a developing range to USB 3. Zero.

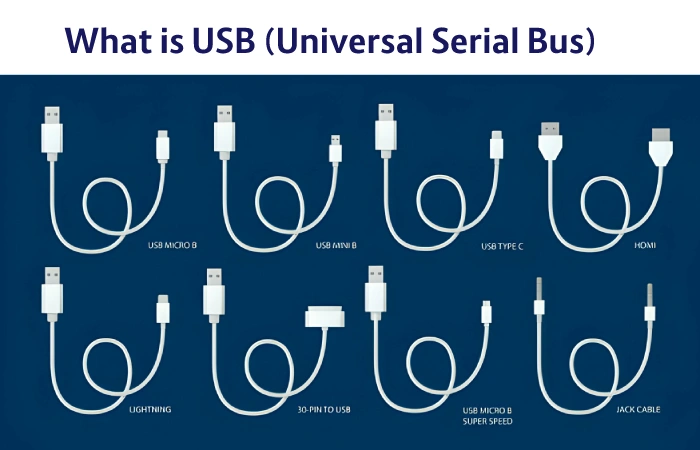

USB Connectors


What is USB (Universal Serial Bus)?

Various USB connectors exist, all of which we describe underneath.

  • USB Type C: Often stated honestly as USB-C, these plugs and receptacles are square with four rounded corners. Only USB three.1 Type C plugs and containers (and hence cables) exist; however, adapters for backward compatibility with USB three. Zero and a couple of.0 connectors are to have. This modern USB connector has sooner or later solved the trouble of which aspect goes up. Its symmetrical layout lets it insert in the receptacle in either style, so you never need to try once more One of the biggest peeves about in advance USB plugs) These widely adopt on smartphones and different gadgets.
  • USB Type A: Officially known as USB Standard-A, those plugs and receptacles are square and usually seen USB connectors. USB 1.1 Type-A, USB 2.0 Type-A and USB three.0 Type-A plugs and receptacles are physically compatible.
  • And also, USB Type B: Officially referred to as USB Standard-B, those plugs and receptacles are square formed with an additional notch on top, most substantial on USB three.0 Type B connectors. USB 1.1 Type B and USB 2. Zero Type B plugs are physically compatible with USB 3. Zero Type B receptacles are USB three. And also, Zero Type B plugs aren’t well suited with USB 2.0 Type B or USB 1.1 Type B receptacles.

USB Type B Connectors

  1. A USB Powered-B connector is likewise distinctive in the USB 3.0 prefer. This receptacle bodily well matches USB 1.1 and USB 2. Zero Standard-B plugs, and of the route, USB 3. Zero Standard-B and Powered-B plug as nicely.
  • USB Micro-A: USB 3. Zero Micro-A plugs seem like two one-of-a-kind rectangular plugs fused collectively, one slightly longer than the other. USB three. Zero Micro-A plugs are best compatible with USB three. Zero Micro-AB receptacles.
  1. USB 2.0 Micro-A plugs are tiny and rectangular, similar to, in many ways, a shrunken USB Type-A plug. However, USB Micro-A plugs physically match USB 2. Zero and USB 3. Micro-AB receptacles.
  • USB Micro-B: USB 3.0 Micro-B plugs look almost identical to USB three. Zero Micro-A plugs appear as a person. However, connected, pins. USB three. Zero Micro-B plugs are like-minded with each USB three. Zero Micro-B receptacles and USB three.0 Micro-AB receptacles.
  • USB 2.0 Micro-B plugs are tiny and square; however, the two corners on one of the lengthy aspects are bevelled. USB Micro-B plugs are bodily like-minded with both USB 2. Zero Micro-B and Micro-AB receptacles, in addition to USB 3. Zero Micro-B and Micro-AB receptacles.
  • USB Mini-A: The USB 2.0 Mini-A plug is square; however one facet is extra round. USB Mini-A plugs only well match with USB Mini-AB receptacles. There isn’t any USB 3. Zero Mini-A connector.
  • USB Mini-B: The USB 2.0 Mini-B plug is rectangular with a small indention on both sides, almost looking like a stretched out piece of bread while searching at it head-on. USB Mini-B plugs are bodily like-minded with USB 2. Zero Mini-B and Mini-AB receptacles. There is no USB 3.0 Mini-B connector.
